2-Position L-Angle Adapters

SKU: 902186-10

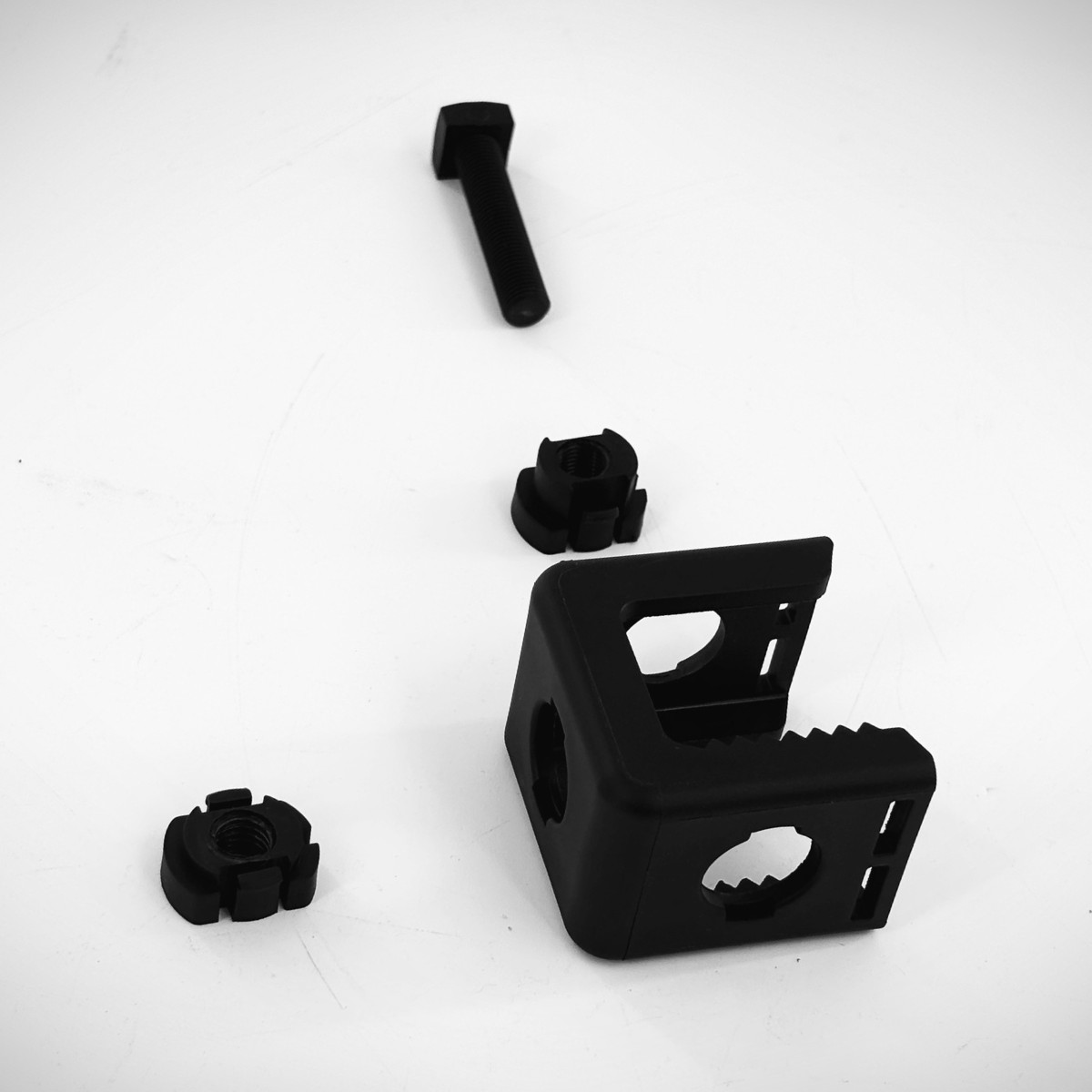

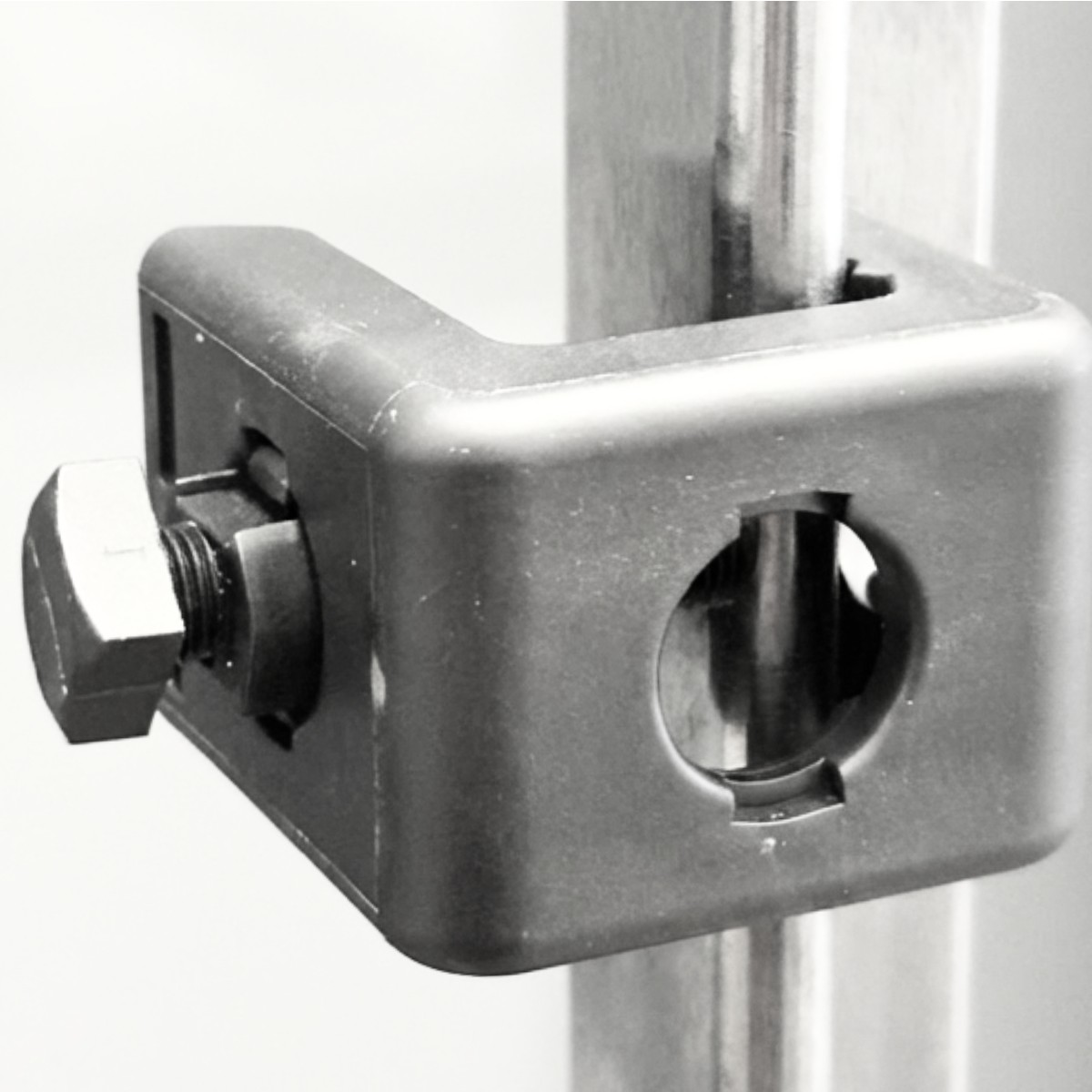

PIM Shield® L-Angle Adapters are engineered to secure cable support hardware while eliminating metal-to-metal contact at the mounting interface—one of the most common sources of passive intermodulation (PIM). With a serrated clamp design and integrated polymer isolation, installers get a fast, secure attachment to angled members without compromising network performance. The result is consistent installs, reduced troubleshooting, and long-term reliability in the field.

• • Serrated clamp design provides a strong, stable attachment to angled steel, maintaining position under real-world site conditions.
• • Polymer screw and threaded inserts isolate snap-in hangers from the mount—eliminating metal-to-metal contact at critical RF points.
• • 3/4” accessory holes accept low-PIM snap-ins, with optimal performance when paired with Gen 2 Snap-Ins.
• • Optional straight threaded inserts (902200-10) convert mounting points to support 3/8”-16 threaded rods or bolts for auxiliary applications.
• • Quick clamp-and-secure installation reduces install time while delivering repeatable, high-quality outcomes across sites.
