PIM Shield® Torque Wrenches
Proper installation torque is critical for bolted connections to achieve low-PIM performance. ConcealFab® has identified the optimal torque values for each PIM Shield® cable support system and offers convenient, fixed-torque wrenches matched to each required torque setting.
- • Multiple head sizes available to match common site hardware and RF connectors
- • Options support both imperial and metric applications (for example, 3/8" and M10)
- • Fixed-torque design promotes repeatable results across crews and sites
- • Color-coded grips make the correct torque tool easy to identify in the field
| SKU | Product Image | Head Size | Torque | Use With | Grip Color | Actions |
|---|---|---|---|---|---|---|
| 901039 |  | 9/16" | 4 FT-LB (5.4 Nm) | 3/8" Hardware | Red | Details & Add to Quote |
| 900053 |  | 9/16" | 10 FT-LB (13.6 Nm) | 3/8" Hardware | Blue | Details & Add to Quote |
| 900412 |  | 17 mm | 15 FT-LB (20.3 Nm) | M10 Hardware | Blue | Details & Add to Quote |

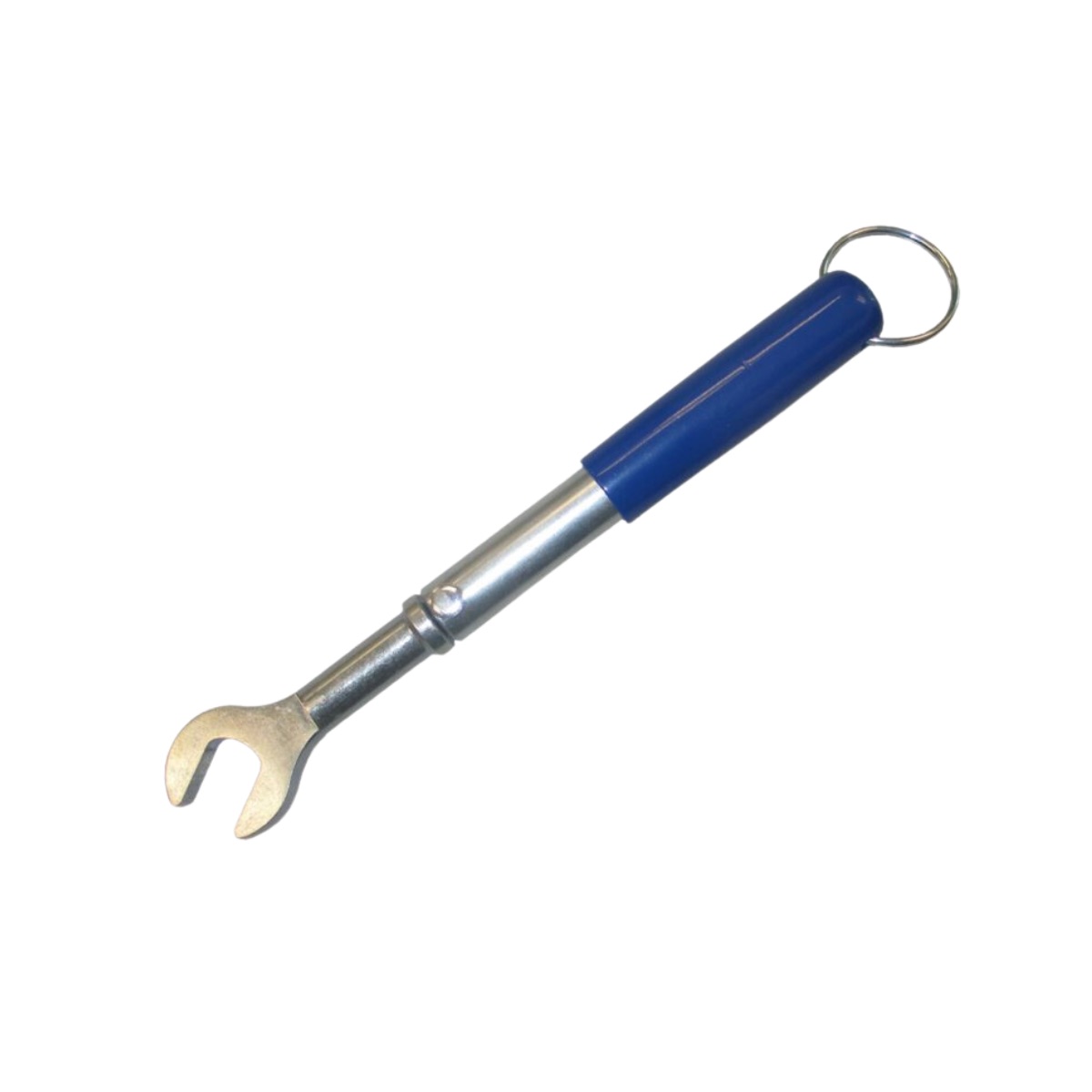

| 900413 |  | 3/4" | 20 FT-LB (27.1 Nm) | 1/2" Hardware | Blue | Details & Add to Quote |
| 901522 |  | 22 mm | 5.9 FT-LB (8.0 Nm) | 4.3-10 RF Connectors | Blue | Details & Add to Quote |
