PASSIVE INTERMODULATION MITIGATION
PIM Shield® Products

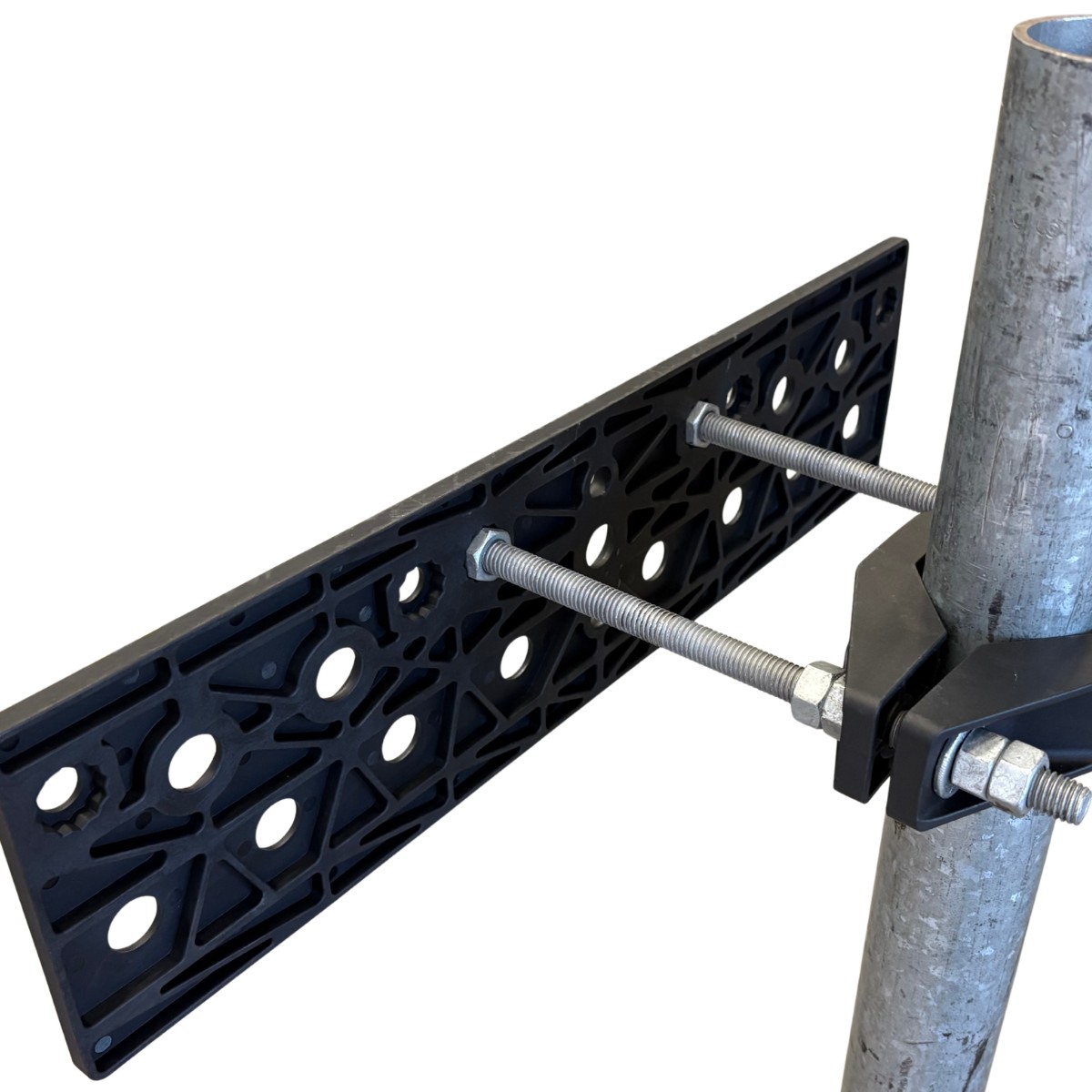

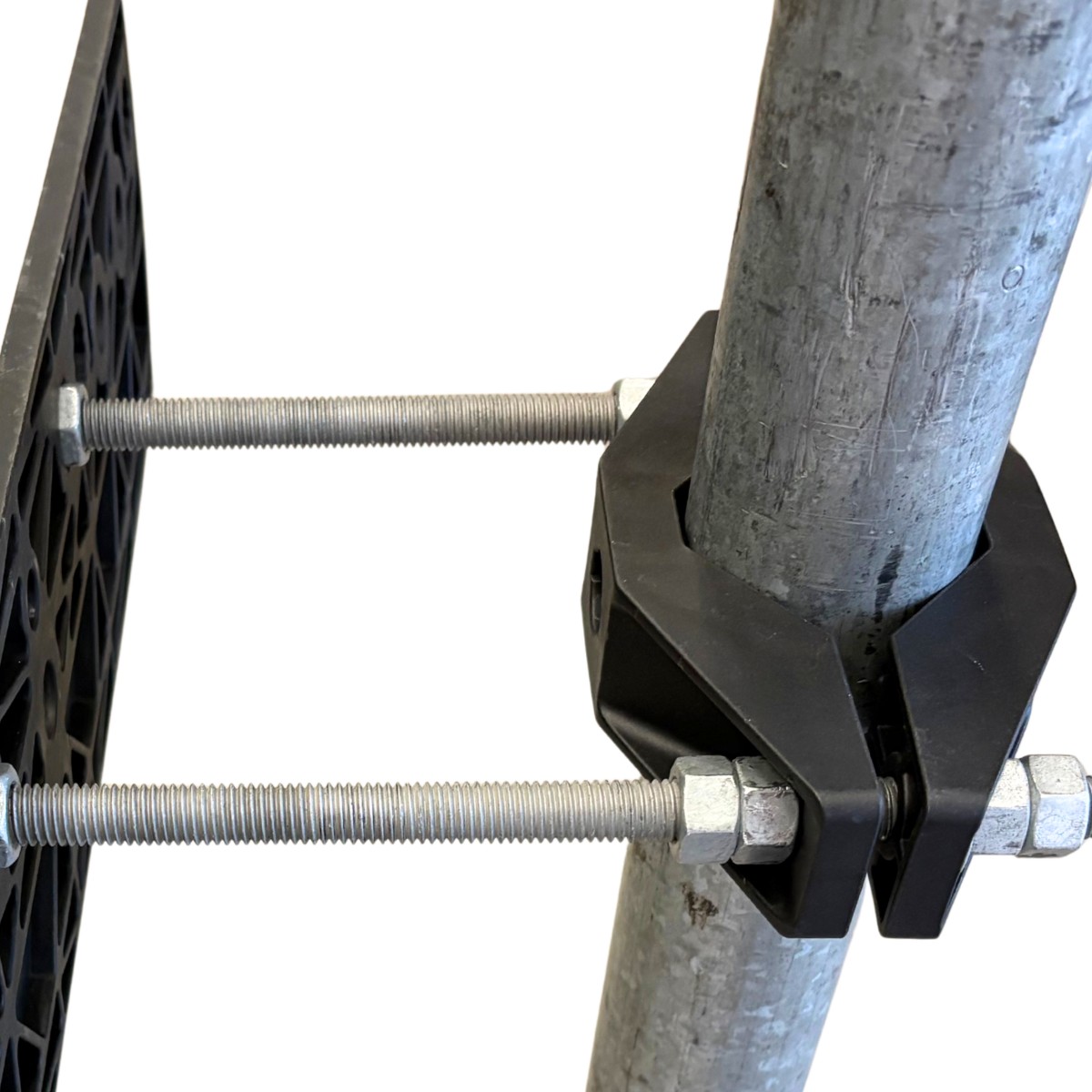

PIM Shield® Polymer Cable Support Bars
Available in polymer and hybrid configurations, PIM Shield® Polymer Cable Support Bars isolate snap-ins and cable accessories from metal at the plate end, where PIM risk is highest. They are highly configurable and can be used in a variety of applications.
- • High-performance polymer construction
- • Remains stable under wind and vibration
- • Mounts to round legs 2-3/8" to 4-1/2" diameter
- • Very low-weight solution
- • 3/4" holes accept low-PIM snap-ins, best performance when paired with our Gen 2 Snap-Ins

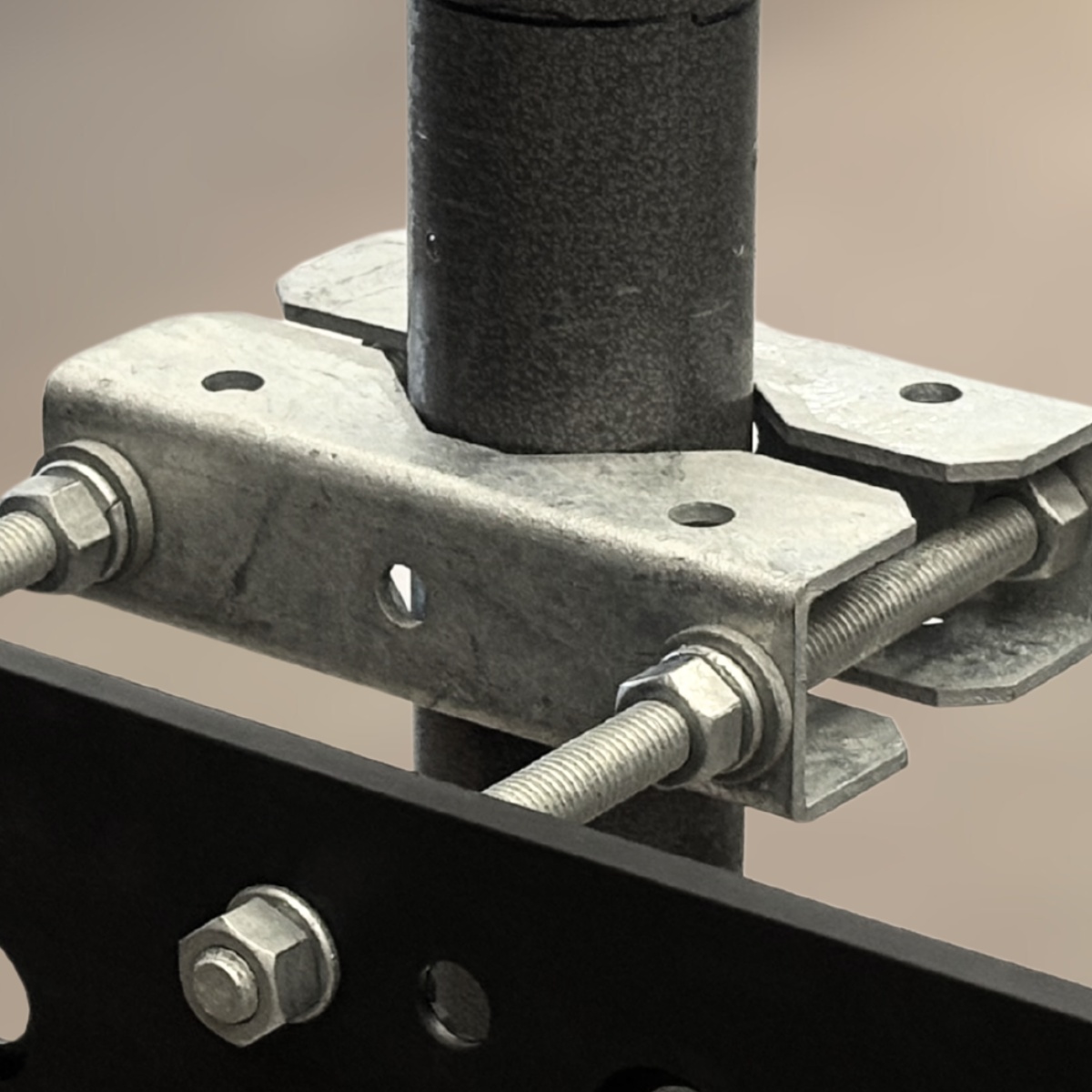

- • Available with steel clamps for maximum holding strength in high-wind and heavy-cable applications
| SKU | Product Image | Description | Range | Positions | Weight | Actions |
|---|---|---|---|---|---|---|
| 902053-01 |  | Standard | 10" | 13 | 0 lbs | Details & Add to Quote |

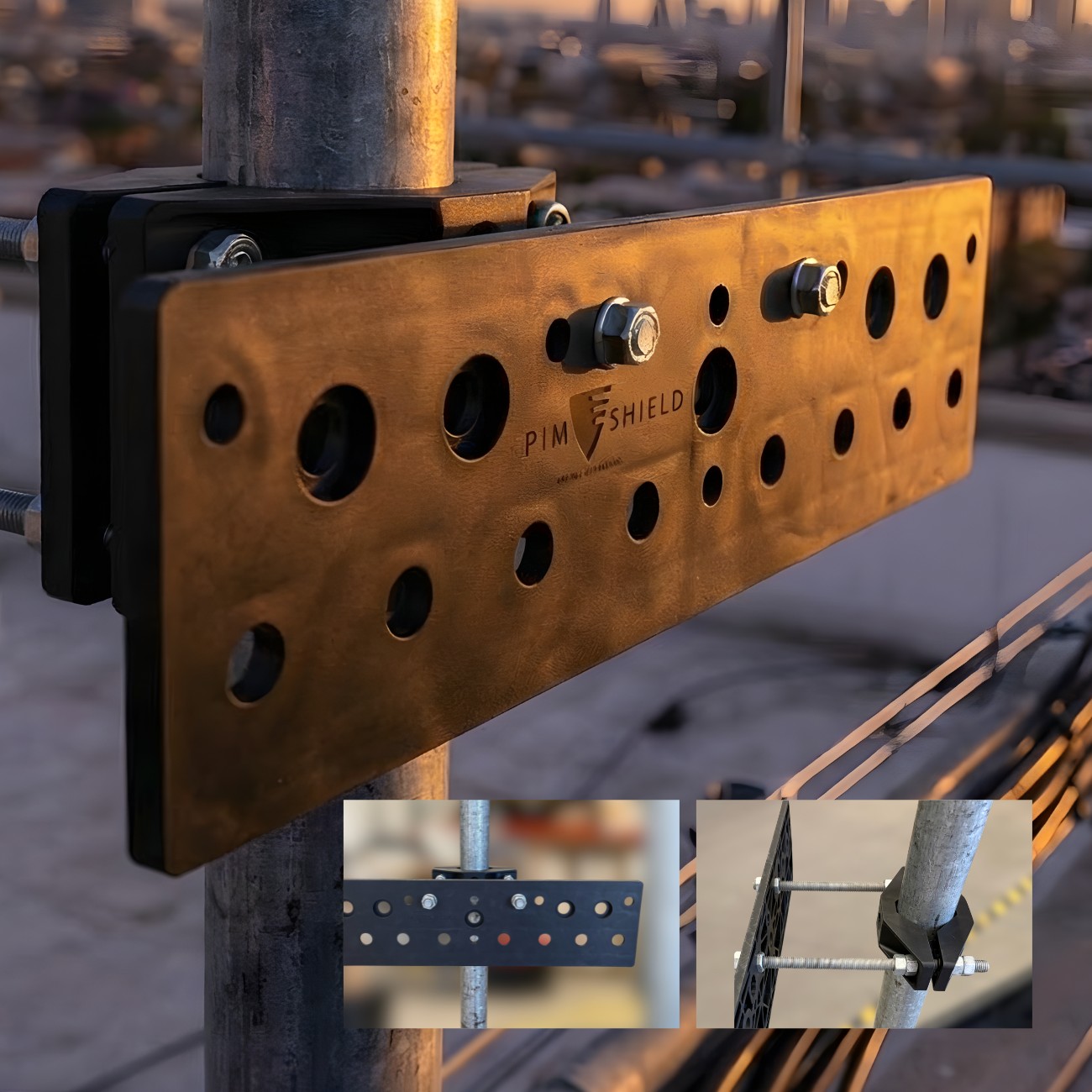

| 902053-02 |  | Extended Range | 18" | 13 | 0 lbs | Details & Add to Quote |
| 902055-02-3 |  | Extended Range (3 Pack) | 18" | 26 | 0 lbs | Details & Add to Quote |
| 901933-01 |  | Standard Hybrid | 10" | 13 | 4 lbs | Details & Add to Quote |
| 901933-02 |  | Extended Range Hybrid | 18" | 13 | 6 lbs | Details & Add to Quote |
| 901933-02-3 |  | Extended Range Hybrid (3-Pack) | 18" | 26 | 22 lbs | Details & Add to Quote |
