PASSIVE INTERMODULATION MITIGATION
PIM Shield® Products
PIM Shield® Hybrid Snap-Ins
PIM Shield® Hybrid Snap-Ins provide a low passive intermodulation solution for securing RF, fiber, power, and RET cables in high-risk PIM zones. ConcealFab’s patented design adds insulation at key mating surfaces to help prevent unwanted metal-to-metal contact that can contribute to PIM.
- • Low PIM performance
- • High-strength design
- • Easy to install and re-position
- • Sizes available for 13 mm to 52 mm cable diameters
- • Optional cable cushions for smaller-diameter cables
| SKU | Product Image | Cable Diameter | Height | Length | Width | Qty. | Actions |
|---|---|---|---|---|---|---|---|
| PSHS-1319-10 |  | 13 - 19 | 40 mm (1.57") | 40 mm (1.57") | 36 mm (1.42") | 10 | Details & Add to Quote |
| PSHS-2630-10 |  | 26 - 30 | 40 mm (1.57") | 40 mm (1.57") | 36 mm (1.42") | 10 | Details & Add to Quote |
| PSHS-3642-10 |  | 36 - 42 | 75.3 mm (2.96") | 40 mm (1.57") | 62 mm (2.44") | 10 | Details & Add to Quote |

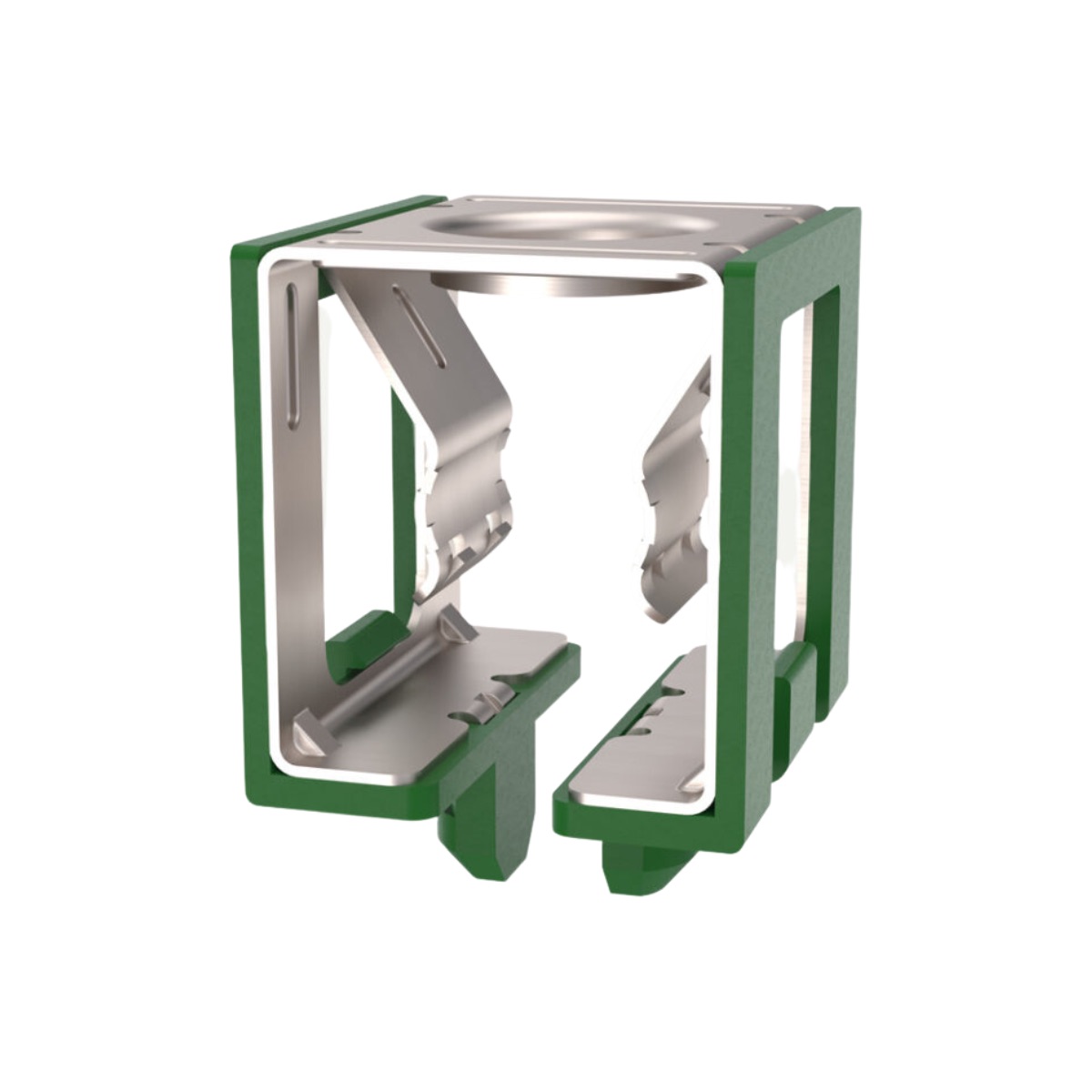

| PSHS-4852-10 |  | 48 - 52 | 75.3 mm (2.96") | 40 mm (1.57") | 62 mm (2.44") | 10 | Details & Add to Quote |
