PASSIVE INTERMODULATION MITIGATION
PIM Shield® Products

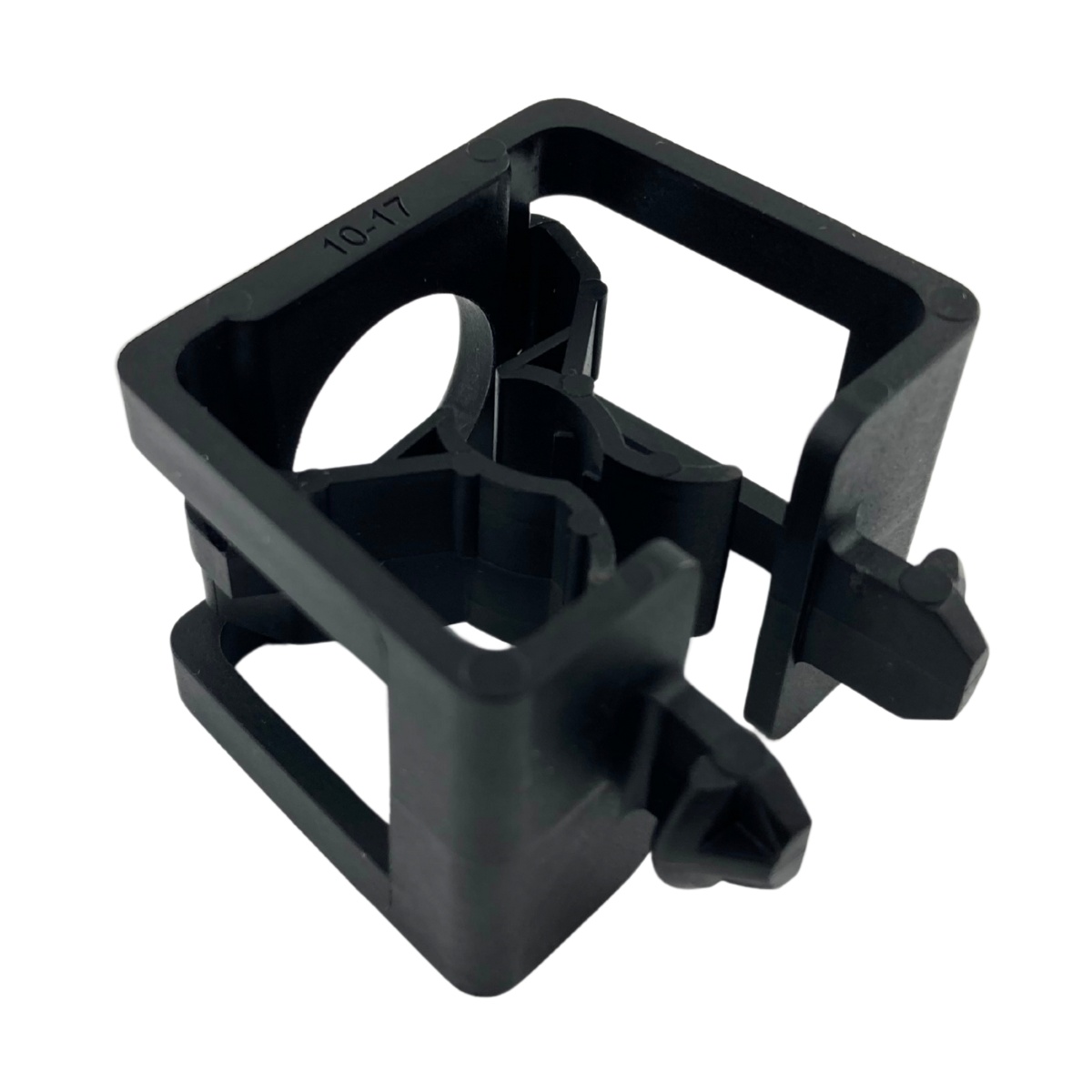

PIM Shield® Gen 2 Snap-Ins
PIM Shield® Gen 2 Snap-Ins deliver a major upgrade in both PIM mitigation and install speed for demanding RF environments. Molded from UV-stable, glass-filled polymer, they hold up outdoors while remaining inherently PIM-free. The Gen 2 design is built for effortless, one-handed, tool-free installation, with an expanded insertion zone that makes securing 4–11 mm cables fast and consistent.
- • Designed to snap into support bars or compatible accessories (sold separately) that are 0.118"–0.160" thick with 0.71"–0.76" diameter mounting holes.
- • UV-stable, glass-filled polymer (nylon) engineered to resist the breakage common in competitive designs.
| SKU | Product Image | Cable Diameter | Height | Length | Width | Qty. | Weight | Actions |
|---|---|---|---|---|---|---|---|---|

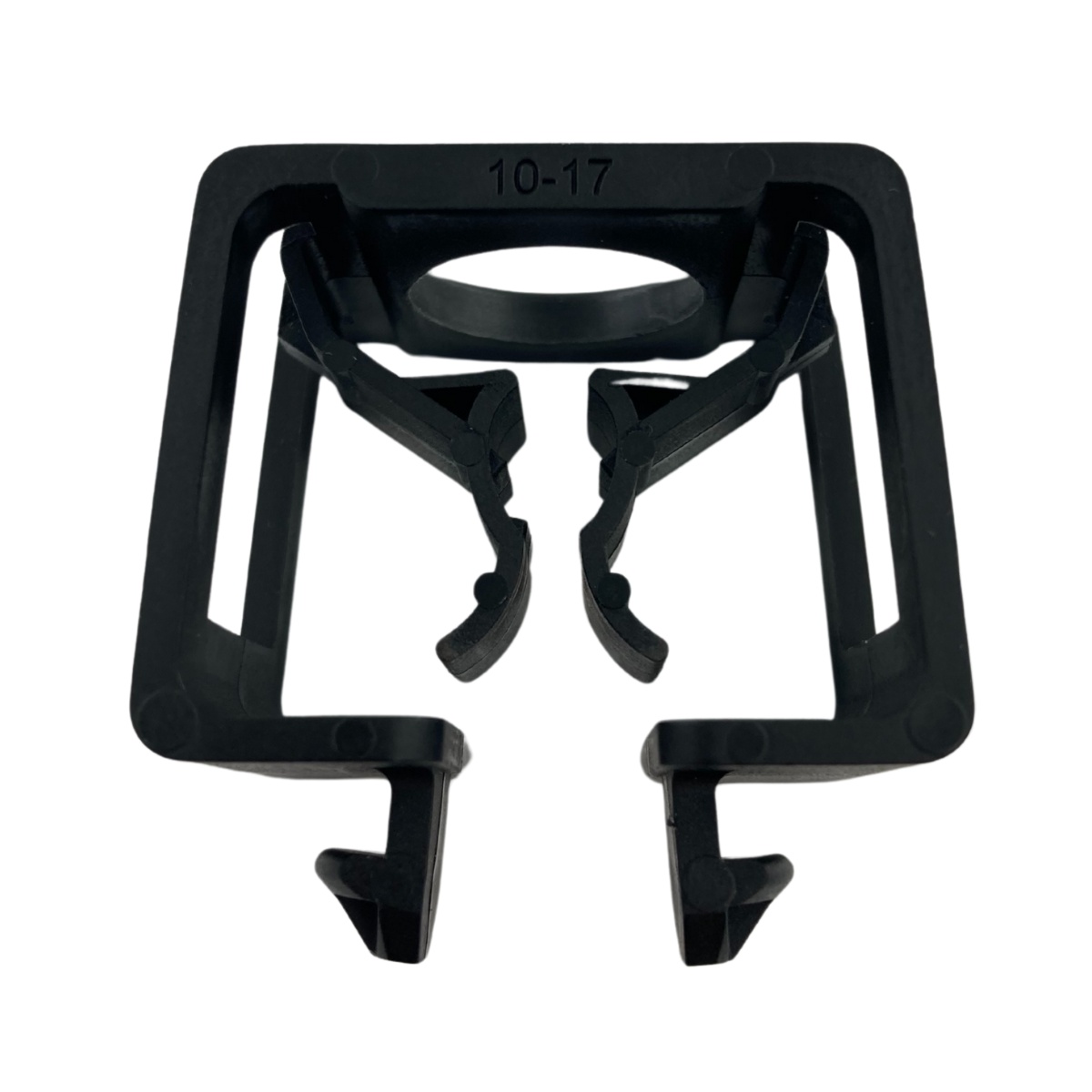

| PSPS-0411-10 |  | 4 - 11 mm | 31 mm (1.22") | 30 mm (1.18") | 36 mm (1.42") | 10 | 3 lbs | Details & Add to Quote |
| PSPS-1017-10 |  | 10 - 17 mm | 31 mm (1.22") | 30 mm (1.18") | 36 mm (1.42") | 10 | 3 lbs | Details & Add to Quote |
