PASSIVE INTERMODULATION MITIGATION
PIM Shield® Products
PIM Shield® Cable Support Blocks
ConcealFab® PIM Shield® Cable Support Blocks secure cable in an all-polymer, metal-free clamp that protects RF performance where passive intermodulation matters. Ten sizes span 4mm through 54mm cable, so one block family covers the full run from jumper to main feeder.
- • All-polymer construction removes metal contact at the support point, keeping passive intermodulation out of the cable path
- • Ten sizes cover 4mm to 54mm cable, supporting everything from small jumpers to large feeder on a single product line
- • The smallest size ships with an elliptical cushion to grip fine cable securely
- • Blocks stack and mount with the PIM Shield® Hardware Kits, building one, two, or three-high assemblies on a single rod
| SKU | Product Image | Description | Cable Size | Qty. | Weight | Actions |
|---|---|---|---|---|---|---|
| PSCSB-78-10 |  | Cable Support Block | 27–29mm (7/8") | 10 | 2 lbs | Details & Add to Quote |

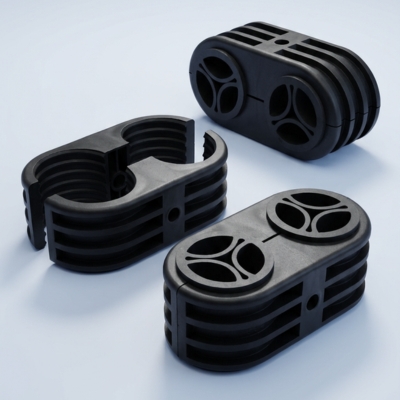

| PSCSB-35-10 |  | Cable Support Block | 34–36mm (35mm) | 10 | 2 lbs | Details & Add to Quote |
| PSCSB-114-10 |  | Cable Support Block | 39–42mm (1-1/4") | 10 | 3 lbs | Details & Add to Quote |
| PSCSB-158-10 |  | Cable Support Block | 50–54mm (1-5/8") | 10 | 3 lbs | Details & Add to Quote |
