PASSIVE INTERMODULATION MITIGATION
PIM Shield® Products
PIM Shield® Cable Block Hardware
ConcealFab® PIM Shield® Cable Block Hardware kits mount and stack the cable support blocks on a single galvanized threaded rod. Three rod lengths build one-, two-, or three-high assemblies, and each kit ships as a 10-pack.
- • Three rod lengths build one- , two- , or three-high block assemblies on a single mounting point
- • Each kit is a 3/8-inch galvanized steel threaded rod, sized at 4-1/4, 7, or 9-1/2 inches to match the one- , two- , or three-high stack
- • The rod indexes each cable support block at a consistent pitch up the stack, so the blocks sit square and evenly spaced
- • Each SKU is a 10-pack of kits, and a full case holds ten of those packs
| SKU | Product Image | Type | Stack | Rod Length | Qty. | Weight | Actions |
|---|---|---|---|---|---|---|---|

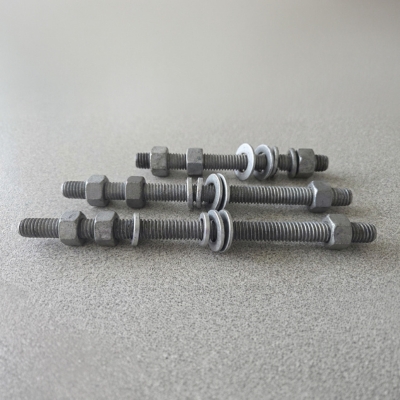

| PSCBH-01-10 |  | Standard Cable Block Hardware | 1-High | 3/8" × 4-1/4" | 10 | 2 lbs | Details & Add to Quote |
| PSCBH-02-10 |  | Standard Cable Block Hardware | 2-High | 3/8" × 7" | 10 | 2 lbs | Details & Add to Quote |
| PSCBH-03-10 |  | Standard Cable Block Hardware | 3-High | 3/8" × 9-1/2" | 10 | 3 lbs | Details & Add to Quote |
