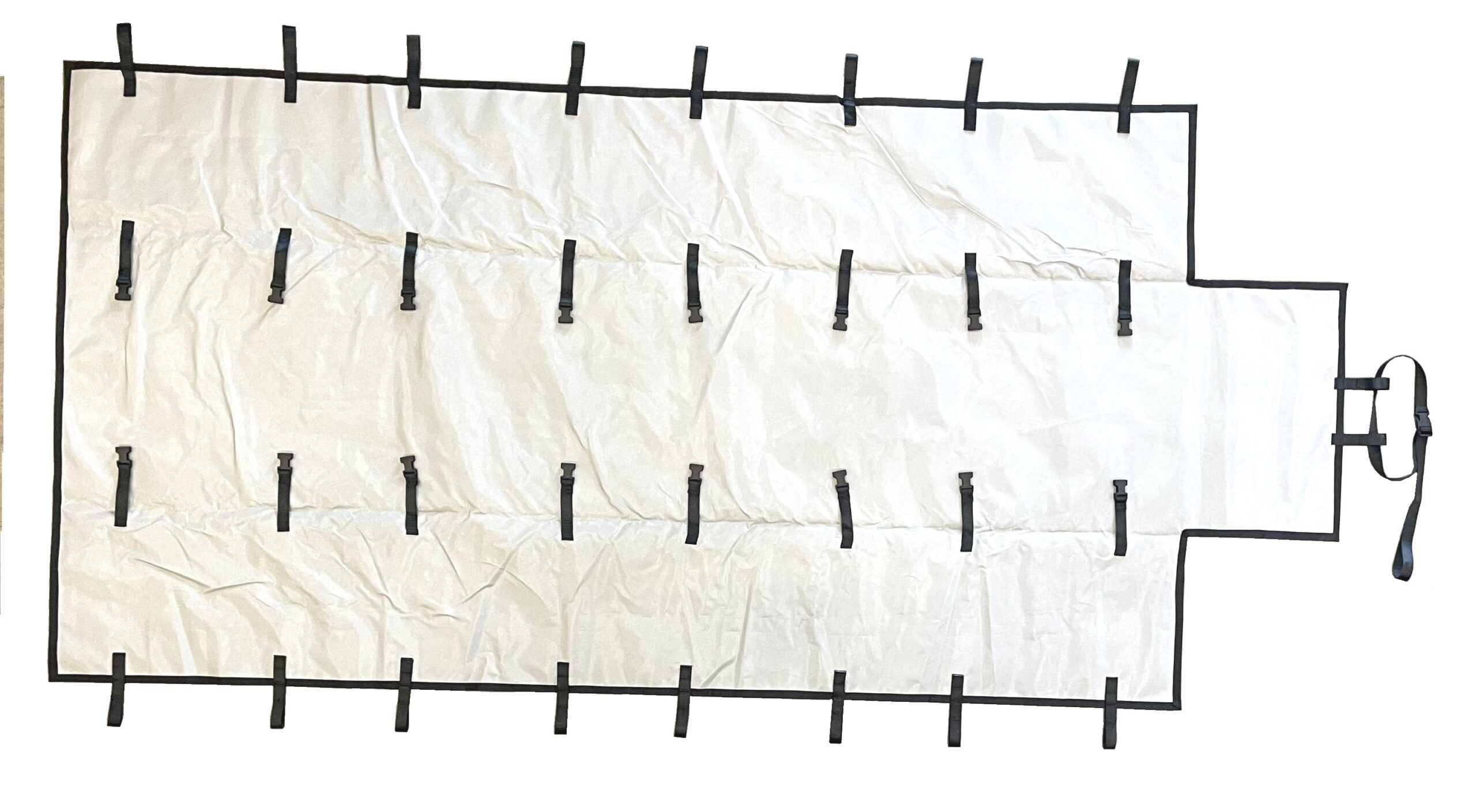

PIM Absorber Front Blanket Kit for Large Antennas

The front PIM Absorber kit is a patented low PIM blanket assembly designed to be secured to the front face of base station antennas. The front absorber kit suppresses forward radiation from the antenna with minimum PIM generation and minimum reflection back into the antenna feed system.

• • PIM Shield® Absorber Front Blanket Kit, Large Antennas
• • Suppresses forward radiation with minimum PIM generation and minimum reflection back into the antenna feed system
• • Use with back PIM Absorber kits (901125 or 901162) to help determine direction of external PIM sources
• • Kit includes PIM blanket with integrated clips, pole attach strap, 4 RF absorber panels (24"x24"x4"), and 4 adjustable bungee straps
• • PIM Performance: IM3 <-97 dBm (tested per IEC 62037-8, 700 MHz and 1900 MHz, 2x 20W test tones)
